Blackbody Spectrum

Requires a Wolfram Notebook System

Interact on desktop, mobile and cloud with the free Wolfram CDF Player or other Wolfram Language products.

Requires a Wolfram Notebook System

Edit on desktop, mobile and cloud with any Wolfram Language product.

Planck's law gives the intensity of the energy radiated by a blackbody as a function of wavelength and temperature. As the temperature of a blackbody increases, the peak wavelength shifts from red to blue. Extremely hot blackbodies emit most of their energy in the ultraviolet range, while cool blackbodies emit primarily in the infrared. Stars behave like blackbodies, so their color follows their temperature, too. Stars similar to the sun (with a temperature of about 5800 Kelvin) appear nearly white because the visible part of the intensity curve is nearly flat.

Contributed by: Jeff Bryant (April 2007)
Open content licensed under CC BY-NC-SA


Snapshots


Details

Snapshot 1: Cool stars are orange or red.

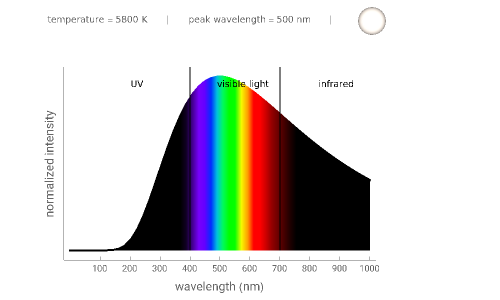

Snapshot 2: Medium temperature stars are nearly white.

Snapshot 3: Hot stars are blue.
