Operation of a Memristor

Initializing live version
Download to Desktop

Requires a Wolfram Notebook System

Interact on desktop, mobile and cloud with the free Wolfram Player or other Wolfram Language products.

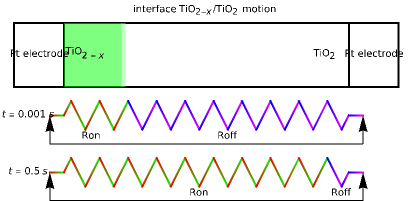

This Demonstration shows the change of the breadth variable in a memristive device. The period of the AC voltage applied is arbitrarily chosen as 1 second. Parameters have been chosen to create the hysteresis behavior in the corresponding I-V curve. A simplified equivalent circuit is also shown where arrows short the two variable resistors, providing resistance values between and according to the interface motion.
