Global Recurrence Plot of Cellular Automaton Dynamic

Initializing live version
Download to Desktop

Requires a Wolfram Notebook System

Interact on desktop, mobile and cloud with the free Wolfram Player or other Wolfram Language products.

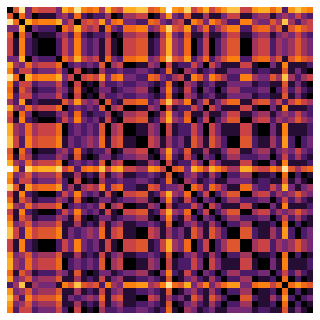

A global recurrence plot defined by the expression , where is a function of the step, shows the recurrence of states in the space of all possible states (phase space). Instances of indicate two steps at which the same state occurs.

[more]

Recurrence plots can be used to analyze cellular automaton (CA) evolution. Calculating the mean, total, or binary-to-decimal of each step in an elementary CA's evolution illustrates its behavior. This Demonstration uses random finite initial conditions.
