Phasor and Temporal Diagrams in Electrical Power-System Fault Analysis

Requires a Wolfram Notebook System

Interact on desktop, mobile and cloud with the free Wolfram CDF Player or other Wolfram Language products.

Requires a Wolfram Notebook System

Edit on desktop, mobile and cloud with any Wolfram Language product.

This Demonstration uses phasor and temporal diagrams to show the effect of symmetric and asymmetric faults in a three-phase system.

[more]

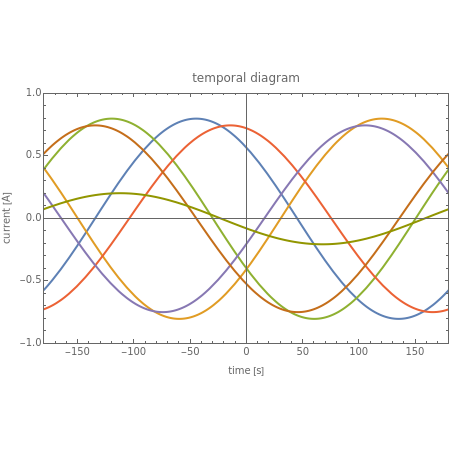

A temporal diagram shows the signals in cosine form, in which it is difficult to analyze the effect of a fault in an electrical system. In such cases, the phasor diagram helps the analysis. A phasor diagram represents the cosine wave frequencies as a vector.

The symmetric decomposition of phases A, B, and C shows the effects caused in symmetrically equivalent circuits (in positive, negative, and zero sequences).

[less]

Contributed by: Daniel Motter (September 2011)
Based on a program by: Daniel Motter
Open content licensed under CC BY-NC-SA


Snapshots


Details

References

[1] W. D. Stevenson, Jr., Elements of Power System Analysis, 3rd ed., New York: McGraw–Hill, New York, 1975.

[2] B. Mirafzal, "Power Systems (III)." (Sep 2011)

[3] J. R. Lucas, "EE 423—Power Systems Analysis." (Sep 2011) http://www.elect.mrt.ac.lk/EE423_%20Fault_Analysis_Notes.pdf.

[4] "Protection Basics: Introduction to Symmetrical Components." (Sep 2011) http://www.gedigitalenergy.com/smartgrid/Dec07/7-symmetrical.pdf.
