The Ratio of a Side of a Triangle to the Corresponding Side of the Orthic Triangle

Initializing live version
Download to Desktop

Requires a Wolfram Notebook System

Interact on desktop, mobile and cloud with the free Wolfram Player or other Wolfram Language products.

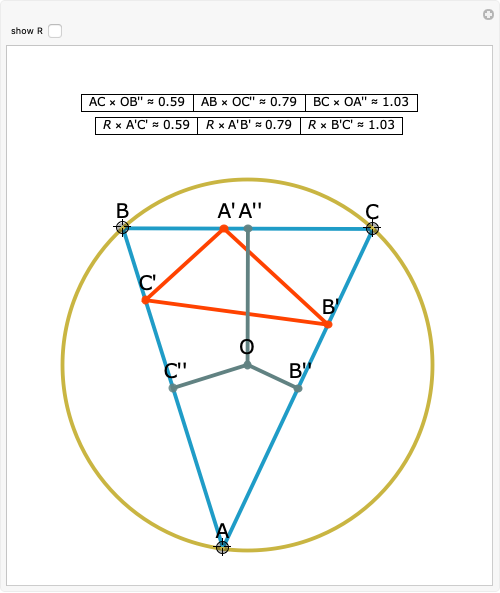

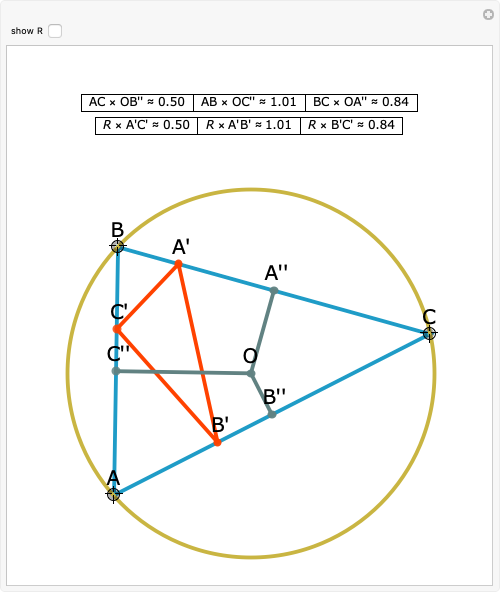

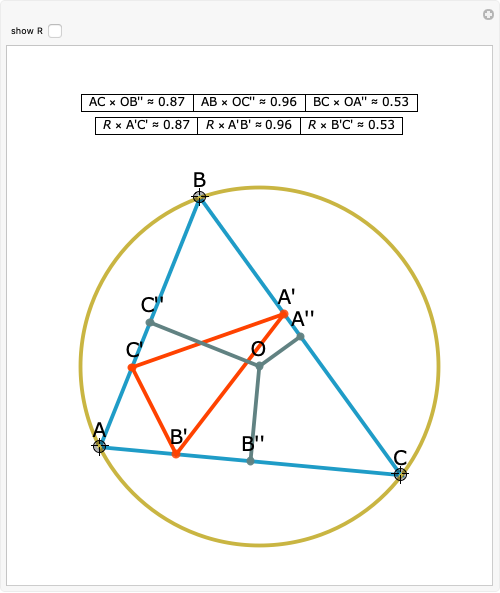

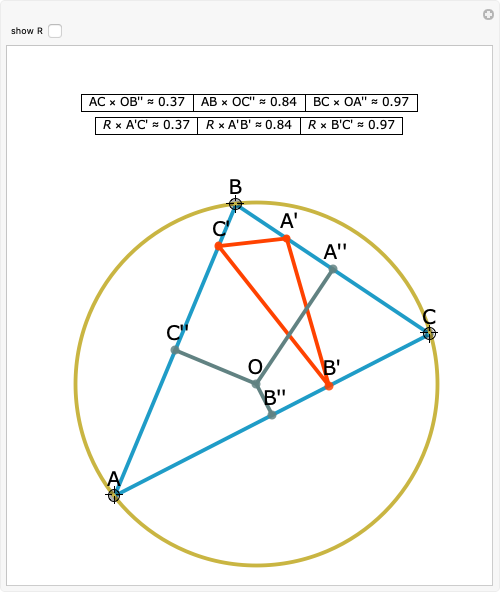

The ratio of a side of a triangle to the corresponding side of the orthic triangle is equal to the ratio of the circumradius to the distance from the side to the circumcenter. For example, .

Contributed by: Jay Warendorff (March 2011)
Open content licensed under CC BY-NC-SA

Snapshots

Details

See theorem 197 in N. Altshiller-Court, College Geometry, Mineola, NY: Dover, 2007 p. 100.
