Oscilloscope with Two Signal Inputs

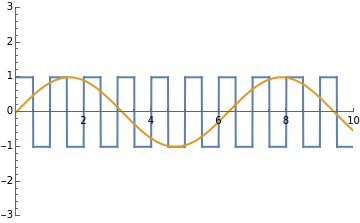

This idealized oscilloscope shows a voltage sweep with two input signals. Sinusoidal, square wave, sawtooth wave, and triangular wave signals can be selected. The phase lag, amplitude, and frequency can be varied for each trace.
