Optimal Magnification in X-Ray Imaging System

Requires a Wolfram Notebook System

Interact on desktop, mobile and cloud with the free Wolfram CDF Player or other Wolfram Language products.

Requires a Wolfram Notebook System

Edit on desktop, mobile and cloud with any Wolfram Language product.

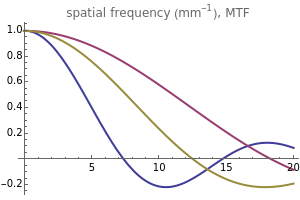

In conventional X-ray imaging, the modulation transfer function (MTF) is the contrast-resolution relation. In a simplified X-ray imaging system, MTF is modeled by sinc functions of the detector size, the focal spot size, and any motion of the patient. Magnification improves the detector's MTF, but the focal spot MTF deteriorates. The optimal magnification is found by matching the first zeros of the MTFs for the detector and the focal spot.

Contributed by: Jihad AlSadah (March 2016)
(KFUPM-Physics)
Open content licensed under CC BY-NC-SA
